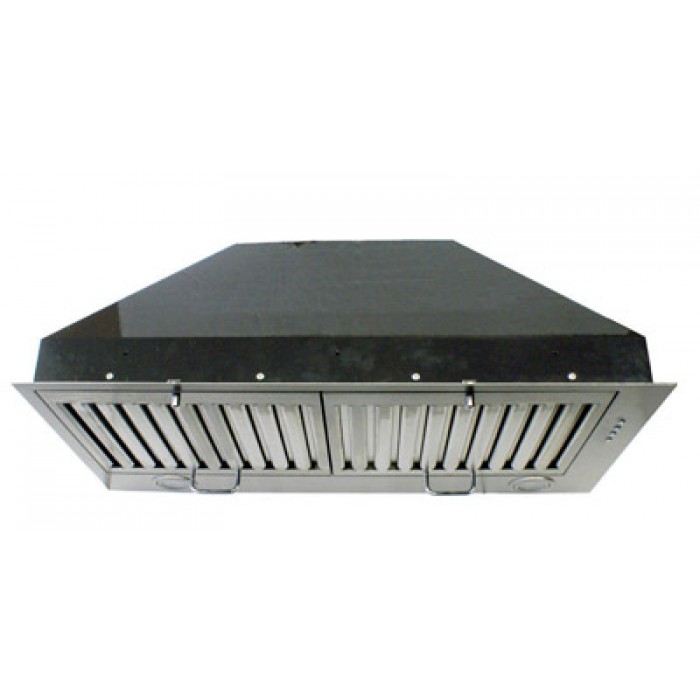

- Model # 912-E70-27
- Body Style - 27" Stainless Steel/Sheet Metal
- Mounting version - Insert Liners
- Suitable for any size of Wooden Hood
- Squirel cage ultra quiet motors
- 460 CFM centrifugal blower
- Noise Level (dB/Sone): Approximately 23.5/0.4 to 60/7.0
- 3 levels push button control
- Two 35W halogen lights (GU10)
- Stainless Steel Baffle Filter (dishwasher-friendly)
- 6" round duct vent exhaust
- One-year limited factory warranty
- Note: The hood has to be installed, inside the cabinet, at minimum 1½" from the rear wall cabinet and at 2" from the front wall cabinet.

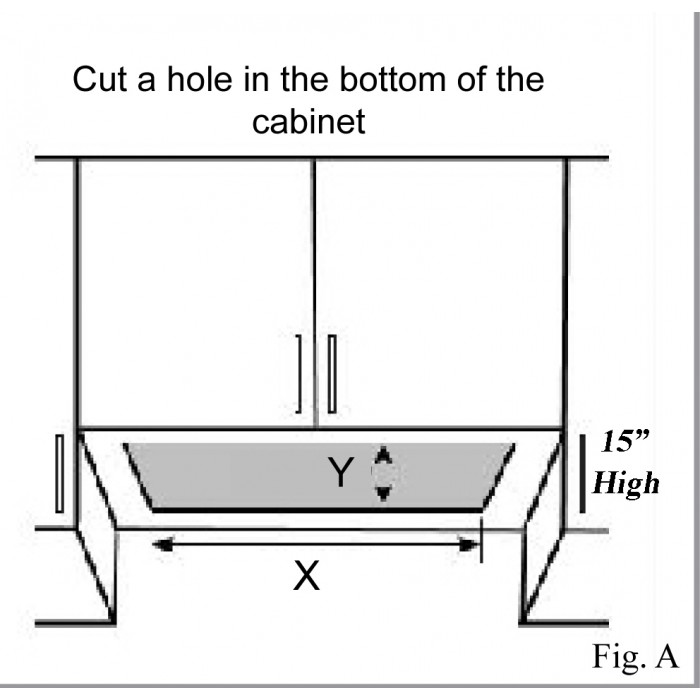

- The dimensions of hole in the bottom of cabinet, X=26½", Y=10¾" (Fig.A)
- Note: Wood blocking might need to be built if it's not available in order to secure the mounting screws (Fig.B)
